A surrogate to estimate the flow rate through a porous medium

This example implements a graph neural network surrogate to predict the flow rate through a porous medium.

Run this notebook in Google Colab. Execute the following cell to install requirements.

Install required packages for Google Colab (run this cell in Colab environment):

try:
    # Check if running in Google Colab
    import google.colab

    # Install PyG as in PyG documentation
    %pip uninstall --yes torch torchaudio torchvision torchtext torchdata
    %pip install torch==2.4.1 torchvision==0.19.1 torchaudio==2.4.1 --index-url https://download.pytorch.org/whl/cu124
    %pip install torch-scatter -f https://data.pyg.org/whl/torch-2.4.1+cu124.html
    %pip install torch-sparse -f https://data.pyg.org/whl/torch-2.4.1+cu124.html
    %pip install torch_geometric==2.6.1 -f https://data.pyg.org/whl/torch-2.4.1+cu124.html

    # Install Graphorge
    %git clone https://github.com/bessagroup/graphorge.git
    %pip install -e ./graphorge
except:
    pass

Imports required to run the notebook:

# Standard
import json
import logging
from pathlib import Path
import pickle
import shutil
import sys

# Third-party
import numpy as np
import torch
from tqdm.auto import tqdm, trange

# Locals
from graphorge.gnn_base_model.data.graph_data import GraphData
from graphorge.gnn_base_model.data.graph_dataset import GNNGraphDataset
from graphorge.gnn_base_model.train.training import train_model
from graphorge.gnn_base_model.predict.prediction import predict

# Make utilities available in the path
try:
    # Check if running in Google Colab
    import google.colab
    utils_path = (
      Path().resolve() / "graphorge" / "benchmarks" / "utils"
    )
except:
    utils_path = (
        Path().resolve().parents[1] / "utils"
    )
sys.path.insert(0, str(utils_path))

# Import required utilities
from utils import download_file

# Set logging configuration
logger = logging.getLogger()
logger.setLevel(logging.INFO)

# Prepare directories
directories = dict(
    raw_data=Path("0_data"),
    processed_data=Path("1_dataset"),
    training=Path("2_training_dataset"),
    validation=Path("3_validation_dataset"),
    model=Path("4_model"),
    in_distribution=Path("5_testing_id_dataset"),
    prediction=Path("7_prediction"),
)

# Create directories if they do not exist
for directory in directories.values():
    directory.mkdir(parents=True, exist_ok=True)

# Note: to render the figures in the documentation, we need to save the
# widget state, see https://github.com/microsoft/vscode-jupyter/issues/4404

---

1. Raw data

The dataset describes pore networks extracted from porous media. See the dataset repository for more information [1].

The dataset is downloaded from the base URL below. It consists of a JSON file, where each entry is a porous network containing:

• id: the ID of the network.

• pore_coordinates (x, y): the coordinates of the pores defining the network.

• channel_idx: channels connecting the pores together.

• channel_width (w): the width of each channel.

• flow_rate: the flow rate through the network when applying a fixed pressure gradient.

Let’s download the dataset and inspect it. Note that the data are, by nature, well described by a graph.

# Set the base URL for downloading the dataset
base_url = "placeholder"

# Download the dataset file
download_file(
    file="porous_networks.tar.xz",
    base_url=base_url,
    dest_path=directories["raw_data"],
)

# Extract the dataset
shutil.unpack_archive(
    directories["raw_data"] / "porous_networks.tar.xz",
    extract_dir=directories["raw_data"],
    format="xztar",
)

# Load the data
with open(directories["raw_data"] / "porous_networks.json", "r") as f:
    data = json.load(f)

# Explore the data structure
print(f"Number of samples: {len(data)}")
print("Data structure for the first sample:")
for key, value in data[0].items():
    print(
        f"{key}: {len(value)} values - First value: {value[0]}"
        if isinstance(value, list)
        else f"{key}: {value}"
    )

INFO:root:Using 'porous_networks.tar.xz' cached in in /home/guillaume/Documents/code/graphorge_fork/benchmarks/cfd/gnn_porous_medium/0_data

Number of samples: 5250
Data structure for the first sample:
id: 0
pore_coordinates: 73 values - First value: [92.639109, 9.877235]
channel_idx: 94 values - First value: [0, 1]
channel_width: 94 values - First value: 2.466653662021832
flow_rate: 2.01291895376651e-15

---

2. Graph dataset

First, we define a function to build the graph. This operation is at the core of the Graphorge framework.

def build_graphorge_graph(
    node_coordinates,
    edge_indexes,
    edge_features,
    node_features,
    global_targets,
):
    """
    Builds a GraphData object from the provided node coordinates, edge indexes,
    node features, and global targets.

    Parameters
    ----------
    node_coordinates : np.ndarray
        An array of shape (n_nodes, n_dim) containing the coordinates of the
        nodes.
    edge_indexes : np.ndarray
        An array of shape (n_edges, 2) containing the indices of the edges.
    edge_features : np.ndarray
        An array of shape (n_edges, n_features) containing the features of the
        edges.
    node_features : np.ndarray
        An array of shape (n_nodes, n_features) containing the features of the
        nodes.
    global_targets : np.ndarray
        An array of shape (n_samples, n_targets) containing the global targets.

    Returns
    -------
    GraphData
        An instance of GraphData containing the graph structure and features.
    """
    # Instantiate the graph data (graphorge)
    # Note that the n_dim is set to 2 as the porous medium is a 2D network
    graph_data = GraphData(n_dim=2, nodes_coords=node_coordinates)

    # Make the edges undirected, i.e., create target_to_source index pairs
    # from source_to_target index pairs
    edge_indexes = np.concatenate(
        (edge_indexes, edge_indexes[:, ::-1]), axis=0
    )

    # Set graph edges indexes. The data does not contain duplicated edges,
    # so we can set is_unique to False to avoid unnecessary processing
    graph_data.set_graph_edges_indexes(
        edges_indexes_mesh=edge_indexes, is_unique=False
    )

    # Duplicate the edge features to match the undirected edges
    edge_features = np.concatenate((edge_features, edge_features), axis=0)

    # Set graph edge feature matrix
    graph_data.set_edge_features_matrix(edge_features_matrix=edge_features)

    # Set graph node features matrix
    graph_data.set_node_features_matrix(node_features_matrix=node_features)

    # Set global targets matrix
    global_targets_matrix = global_targets

    # Set graph global targets
    graph_data.set_global_targets_matrix(global_targets_matrix)

    return graph_data

Let’s define a function to process the data:

def process_porous_network(porous_network):
    """
    Processes a porous_network dictionary to create a GraphData object.

    Parameters
    ----------
    porous_network : dict
        A dictionary containing the porous network data with keys:
        - "pore_coordinates": Coordinates of the pores.
        - "channel_idx": Indexes of pores connected by channels.
        - "channel_width": Width of the channels.
        - "permeability": Permeability of the porous network.

    Returns
    -------
    GraphData
        An instance of GraphData containing the processed porous network data.
    """

    # Extract the node coordinates, edge indexes, and global targets
    node_coordinates = np.array(porous_network["pore_coordinates"])
    edge_indexes = np.array(porous_network["channel_idx"])
    edge_features = np.array(porous_network["channel_width"]).reshape(-1, 1)
    global_targets = np.array(porous_network["flow_rate"]).reshape(-1, 1)

    # Build the graph data
    graph_data = build_graphorge_graph(
        node_coordinates=node_coordinates,
        edge_indexes=edge_indexes,
        edge_features=edge_features,
        # Using coordinates as node features
        node_features=node_coordinates,
        global_targets=global_targets,
    )

    return graph_data

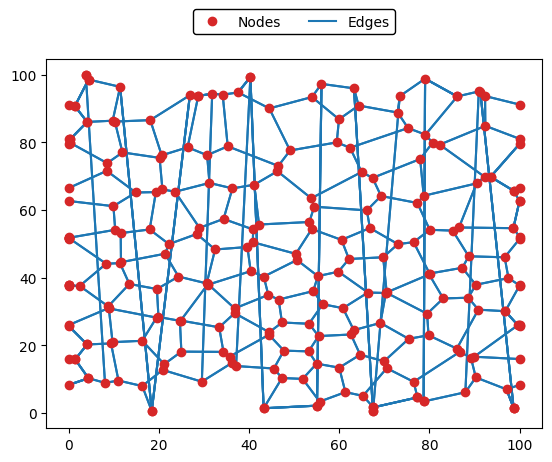

We can inspect the obtained graphs.

graph_data = process_porous_network(data[400])
graph_data.plot_graph(is_show_plot=True)

Finally, we generate the dataset.

# Parameters
samples = "all"  # Number of samples to process, or "all" for all samples

# Determine the number of samples (porous networks) to process
n_samples = len(data)
if samples != "all":
    n_samples = min(samples, n_samples)

dataset_sample_files = []
# Iterate over each porous_network_id in the dataset
for porous_network_id in trange(n_samples, desc="Processing porous networks"):

    # Process the porous netwoeks data to get the graph data
    graph_data = process_porous_network(data[porous_network_id])

    # Get PyG homogeneous graph data object
    pyg_graph = graph_data.get_torch_data_object()

    # Set sample file name
    sample_file_name = f"porous_network_graph_{porous_network_id:04d}.pt"
    # Set sample file path
    sample_file_path = directories["processed_data"] / sample_file_name
    # ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
    # Save graph sample file
    torch.save(pyg_graph, sample_file_path)
    # Save graph sample file path
    dataset_sample_files.append(sample_file_path)

Let’s split the data into train/validation/test datasets.

# This operation is random, so we fix the seed for reproducibility
seed = 42

# Initialize the random number generator
rng = np.random.default_rng(seed)

dataset_split_sizes = {
    "training": 0.7,
    "validation": 0.2,
    "in_distribution": 0.1,
}

split_fractions = np.array(list(dataset_split_sizes.values()))
# Normalize the split fractions to ensure they sum to 1
split_fractions /= split_fractions.sum()
# Get the corresponding split sizes
split_sizes = (split_fractions * len(dataset_sample_files)).astype(int)
# Get the split indices as the cumulative sum of the split sizes
split_indices = np.cumsum(split_sizes)

# Shuffle the dataset sample files
rng.shuffle(dataset_sample_files)

# Split the dataset sample files into training, validation, and test sets
splits_sample_files = np.split(dataset_sample_files, split_indices[:-1])

for split_name, split_files in tqdm(
    zip(dataset_split_sizes.keys(), splits_sample_files),
    desc="Splitting datasets",
):
    split_paths = []
    for file_path in split_files:
        target_path = directories[split_name] / file_path.name
        shutil.copy(
            file_path,
            target_path,
        )

        split_paths.append(target_path.as_posix())

    dataset = GNNGraphDataset(
        directories[split_name].as_posix(),
        dataset_sample_files=split_paths,
        dataset_basename="porous_network_dataset",
        is_store_dataset=False,
    )

    _ = dataset.save_dataset(is_append_n_sample=True)

---

3. GNN model architecture

# Set the GNN model parameters
# ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
gnn_architecture_parameters = dict(
    # Set number of node input and output features
    n_node_in=2,
    n_node_out=0,
    n_time_node=0,
    # Set number of edge input and output features
    n_edge_in=1,
    n_edge_out=0,
    n_time_edge=0,
    # Set number of global input and output features
    n_global_in=0,
    n_global_out=1,
    n_time_global=0,
    # Set number of message-passing steps (number of processor layers)
    n_message_steps=2,
    # Set number of FNN/RNN hidden layers
    enc_n_hidden_layers=2,
    pro_n_hidden_layers=2,
    dec_n_hidden_layers=2,
    # Set hidden layer size
    hidden_layer_size=128,
    # Set model directory
    model_directory=directories["model"],
    model_name="PorousNetworkGNN",
    # Set model input and output features normalization
    is_model_in_normalized=True,
    is_model_out_normalized=True,
    # Set aggregation schemes
    pro_edge_to_node_aggr="add",
    pro_node_to_global_aggr="add",
    # Set activation functions
    enc_node_hidden_activ_type="leakyrelu",
    enc_node_output_activ_type="identity",
    enc_edge_hidden_activ_type="leakyrelu",
    enc_edge_output_activ_type="identity",
    pro_node_hidden_activ_type="leakyrelu",
    pro_node_output_activ_type="identity",
    pro_edge_hidden_activ_type="leakyrelu",
    pro_edge_output_activ_type="identity",
    dec_node_hidden_activ_type="leakyrelu",
    dec_node_output_activ_type="identity",
    # Set device
    device_type="cuda" if torch.cuda.is_available() else "cpu",
)

---

4. GNN model training

train_dataset_file_path = list(
    directories["training"].glob("porous_network_dataset_*.pkl")
)[0]

validation_dataset_file_path = list(
    directories["validation"].glob("porous_network_dataset_*.pkl")
)[0]

# ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
# Load training datasets
train_dataset = GNNGraphDataset.load_dataset(train_dataset_file_path)
validation_dataset = GNNGraphDataset.load_dataset(validation_dataset_file_path)


training_parameters = dict(
    # Set number of epochs
    n_max_epochs=50,
    # Set batch size
    batch_size=16,
    # Set optimizer
    opt_algorithm="adam",
    # Set learning rate
    lr_init=1.0e-03,
    # Set learning rate scheduler
    lr_scheduler_type=None,
    lr_scheduler_kwargs=None,
    # Set loss function
    loss_nature="global_features_out",
    loss_type="mse",
    loss_kwargs=dict(),
    # Set data shuffling
    is_sampler_shuffle=False,
    # Set early stopping
    is_early_stopping=True,
    # Set early stopping parameters
    early_stopping_kwargs=dict(
        validation_dataset=validation_dataset,
        validation_frequency=1,
        trigger_tolerance=20,
        improvement_tolerance=1e-2,
    ),
    # Set seed
    seed=42,
    # Set verbosity
    is_verbose=True,
    tqdm_flavor="notebook",
)

# ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
# Compute exponential decay (learning rate scheduler)
lr_end = 1.0e-5
gamma = (lr_end / training_parameters["lr_init"]) ** (
    1 / training_parameters["n_max_epochs"]
)
# Set learning rate scheduler
training_parameters["lr_scheduler_type"] = "explr"
training_parameters["lr_scheduler_kwargs"] = dict(gamma=gamma)


# ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
# Set model state loading
load_model_state = None
# ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
# Training of GNN-based model
model, _, _ = train_model(
    dataset=train_dataset,
    model_init_args=gnn_architecture_parameters,
    **training_parameters
)

> Setting device: cpu

Graph Neural Network model training
-----------------------------------

> Initializing model...

Fitting GNN-based model data scalers
------------------------------------

> Processing data samples: 100%|████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 3675/3675 [00:03<00:00, 1194.38 sample/s]
> Processing data samples: 100%|████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 3675/3675 [00:02<00:00, 1435.96 sample/s]
> Processing data samples: 100%|████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 3675/3675 [00:02<00:00, 1496.79 sample/s]

> Setting fitted standard scalers...


> Initializing early stopping criterion...

> Training data set size: 3675

> Input data normalization: Yes

> Output data normalization: Yes


> Starting training process...

> Finished training process!


> Minimum training loss (normalized): 5.00869676e-02 | Epoch: 49

> Model directory: 4_model

> Total training time: 0:33:19 | Avg. training time per epoch: 0:00:39

---

5. GNN model prediction

First, lets analyze the loss curves.

from plotly import graph_objects as go

with open(directories["model"] / "loss_history_record.pkl", "rb") as f:
    loss_history_record = pickle.load(f)

# Plot the loss history
fig = go.Figure()
fig.add_scatter(
    y=loss_history_record["training_loss_history"],
    mode="lines+markers",
    name="Training loss",
)

fig.add_scatter(
    y=loss_history_record["validation_loss_history"],
    mode="lines+markers",
    name="Validation loss",
)

fig.update_layout(
    xaxis_title="Epochs",
    yaxis_title="Loss",
    template="plotly_white+xgridoff",
    width=800,
    height=400,
)
fig.show()

test_dataset_file_path = list(
    directories["in_distribution"].glob("porous_network_dataset_*.pkl")
)[0]

dataset = GNNGraphDataset.load_dataset(test_dataset_file_path)

predictions_location, _ = predict(
    dataset,
    model_directory=directories["model"],
    predict_directory=directories["prediction"],
    load_model_state="best",
    loss_nature="global_features_out",
    loss_type="mse",
    loss_kwargs={},
    is_normalized_loss=False,
    dataset_file_path=test_dataset_file_path,
    device_type="cuda" if torch.cuda.is_available() else "cpu",
    seed=None,
    is_verbose=True,
    tqdm_flavor="notebook",
)

Graph Neural Network model prediction
-------------------------------------

> Loading Graph Neural Network model...


> Starting prediction process...

> Finished prediction process!


> Avg. prediction loss per sample: 4.93183533e-32 | mse

> Prediction results directory: /home/guillaume/Documents/code/graphorge_fork/benchmarks/cfd/gnn_porous_medium/7_prediction/prediction_set_1

> Total prediction time: 0:00:05 | Avg. prediction time per sample: 0:00:00

ground_truth = []
predictions = []
# Load the predictions and ground truth from the prediction files
for result_path in tqdm(
    Path(predictions_location).glob("prediction_sample_*.pkl"),
    desc="Loading predictions",
):
    with open(result_path, "rb") as f:
        result = pickle.load(f)
        predictions.append(result["global_features_out"].detach().cpu().item())
        ground_truth.append(result["global_targets"].detach().cpu().item())

min_value = min(min(predictions), min(ground_truth))
max_value = max(max(predictions), max(ground_truth))

fig = go.Figure()

fig.add_scatter(
    x=[min_value, max_value],
    y=[min_value, max_value],
    mode="lines",
    line_color="black",
    name="Identity line",
)

fig.add_scatter(
    x=ground_truth,
    y=predictions,
    mode="markers",
    name="Flow rate predictions",
    opacity=0.5,
)

fig.update_layout(
    xaxis_title="Ground truth",
    yaxis_title="Predictions",
    template="plotly_white+xgridoff",
    width=600,
    height=600,
)

fig.update_yaxes(
    scaleanchor="x",
    scaleratio=1,
)
fig.show()

---

[1]

Under publication. In the meantime, the dataset is available upon request.
